Plug & Play

Product Code: 12
Call for price
Empty
Cell 1023 Cell 1547
Max.bending force (kN) 230 470
bending length (mm) 1020 1530
Daylight opening
Wila clamping (die holder - to punch holder)(mm) 315 395
Promecam clamping (die holder-to ram)(mm) 395 470
Y axes stroke (mm) 196 250
Y axes speed (mm/sec) 200 200
Max. automatic bending speed 36 36
Max. manual bending speed (mm/sec) 10 10
Robot
Max. reach (mm) 1420 1420
Max.playload with gripper (kg) 10 10
Number of axes 6 6
Pose repeability (mm)

-0,03

-0,03

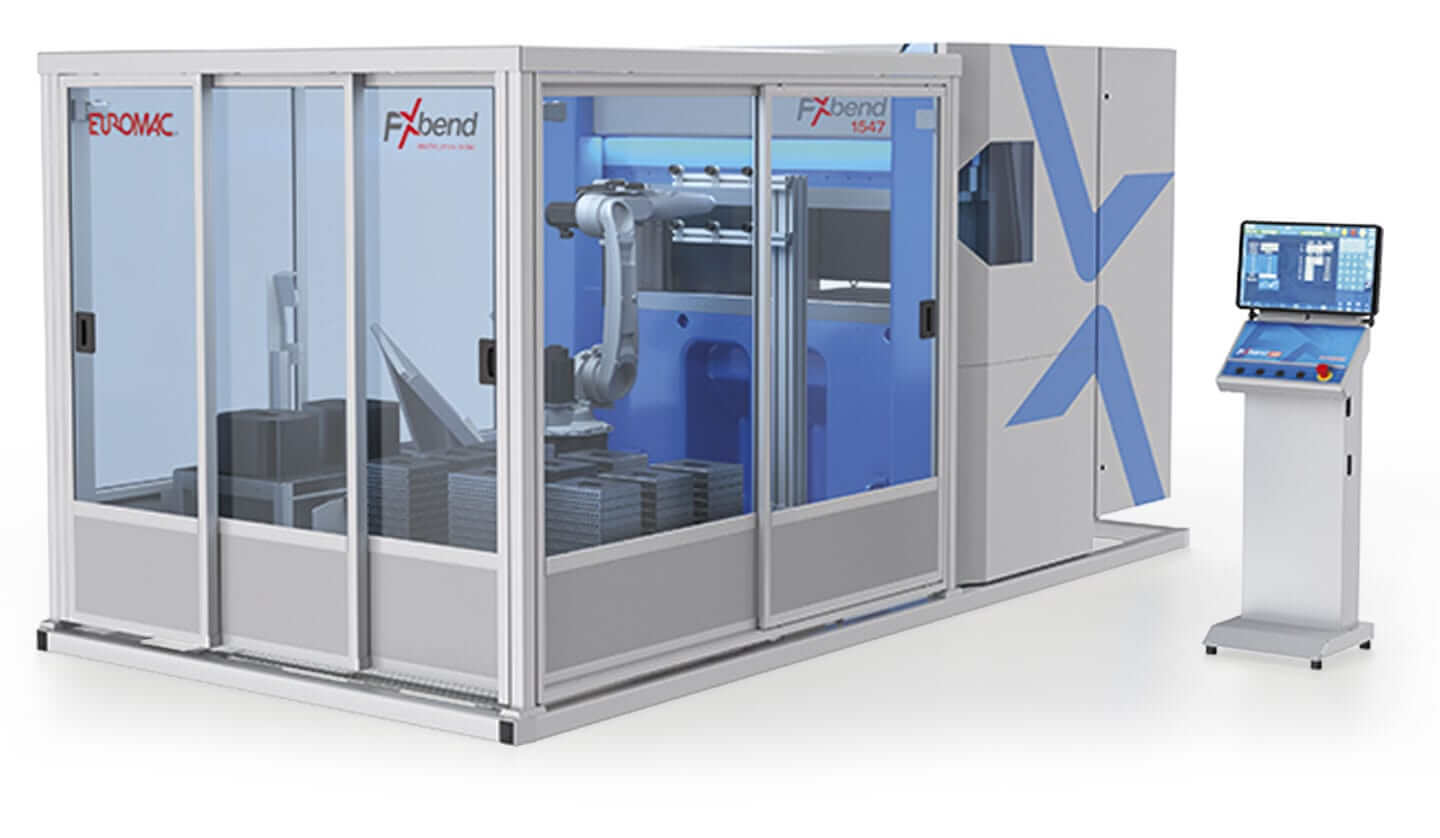

FX Cell
Loading
Maximum stack height (mm) 300 300
Maximum thickness (mm) 5 5
Minimum thickness (mm) 0,7  0,7
 Maximum part weight (Kg)  5  5
 Unloading
Tape storage length (optional)   600 unloading + 600 600 unloading + 600
Area for gravity unloading (mm)
1200 x 800 1200 x 800
Connected load (kWa) 5 6
Approx. weight (kg) 3000
3000 5000
