Mtx flex 6-12

Product Code: 15
Call for price
Empty

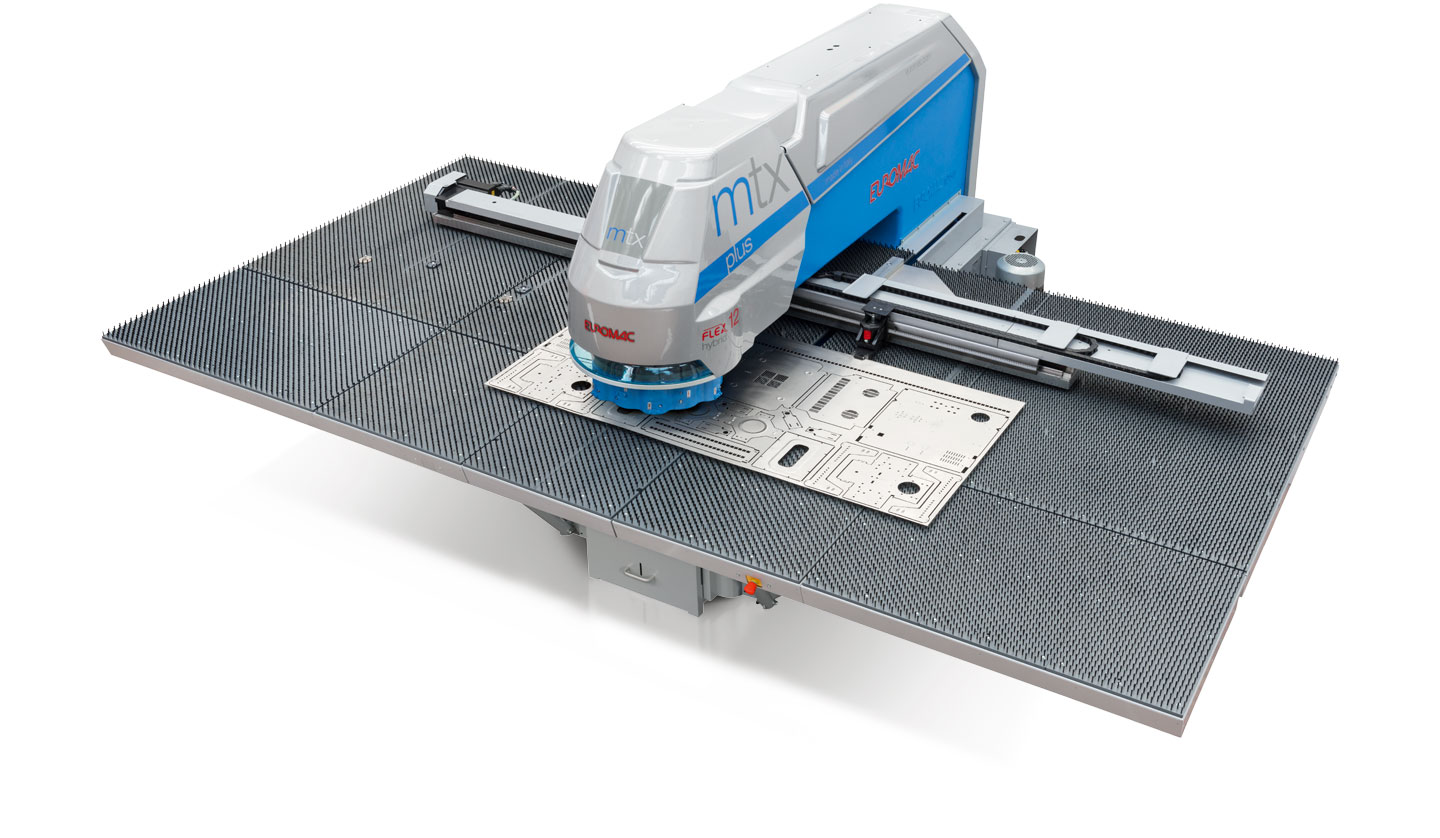

MTX Flex
1250/30-1300 1250/30-2250 1250/30-2500

MTX Flex
1500/22-2250 - 2500

 Max. punching force (kN)  300

220
 Y axis with Multitool /Monopunch (mm)
 Y = 1250  1300 / 1250

 -
 Y = 1500  -  1550 / 1500

 X axis (mm)  1300 / 2250 / 2500

2250-2500
 Automatic repositioning in X (mm)  fino a 10000

fino a 10000

 Numerically control stroke depht (mm)  da 0.1 a 31

da 0.1 a 31
 Hydraulic servomotor controlled system  standard

standard
 Position accuracy (mm)  +/- 0.05

+/- 0.05
 Precision in forming repeatability (mm)  +/- 0.1

+/- 0.1
 Bidirectional Autoindex stations  3  3
 Opening of clamps (mm)  11  11
 Automatic positioning clamps  2  2
 Max. hit rate (1/min):
 Punching with 20 mm pitch  375 375
 Nibbling with 1 mm pitch  1000 1000
 Marking  2000 2000
 Thickness range (mm)  0.6 - 6

0.6 - 5
 Max. weight at reduced axis speed (kg)  150*

150*
 USB port  6  6
 Installed power (kW)  8.5

8.5
 Average consumption (kW/h)  4.5

4.5

 Approx. weight (kg)
 X = 1300  6500

-

 X = 2250  7000
 X = 2500  7800  8800
 Overall dimensions (mm)
 X = 1300  2240 x 3630

 X = 2250  3980 x 3630

 3990 x 3880

 X = 2500  4840 x 3630

 4840 x 3880

*for sheets of over 50 kg weight combined brush and balls tables are required.
