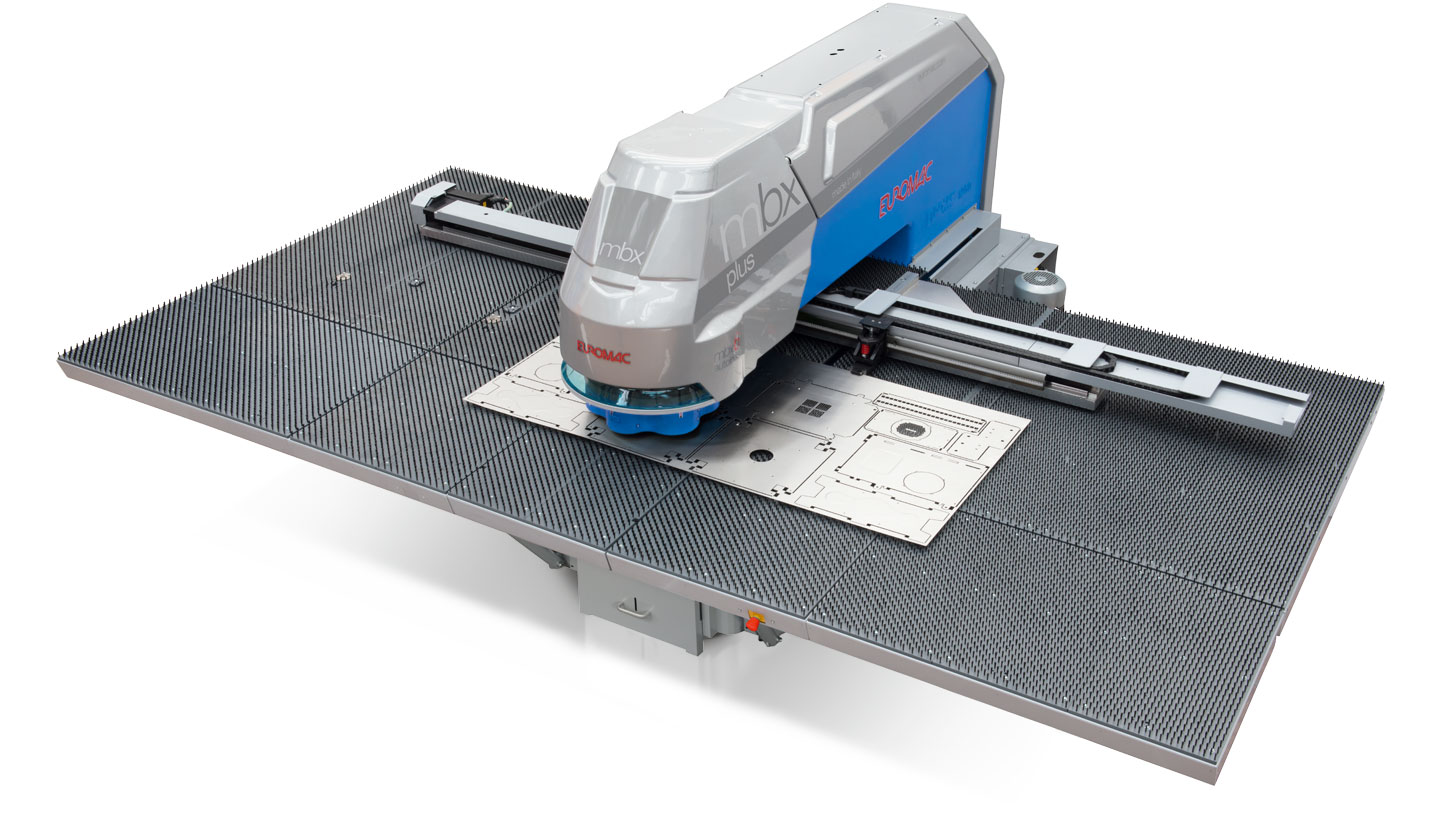

MBX

Product Code: 19
Call for price
Empty
   MBX 6
1250/30-2250
 MBX 6
1250/30-1300
Max. punching force (kN) 300 500
Y axis with Multitool /Monopunch (mm)




 Y=1250  1300 / 1250  1300 / 1250
X axis (mm) 2250              1300
Automatic repositioning in X (mm) fino a 10000 fino a 10000
Hydraulic servomotor controlled system non disponibile non disponibile
Position accuracy (mm) +/- 0.1 +/- 0.1
Bidirectional Autoindex stations 3 3
Opening of clamps (mm) 11 11
Automatic positioning clamps 2 2
Max. hit rate (1/min):

Punching with 20 mm pitch 300 250
Nibbling with 1 mm pitch 625 550
Thickness range (mm) 0.6 -6 0.6 - 6
Max. weight at reduced axis speed (kg) 150* 150*
USB port 6 6
Installed power (kW) 8.5 8.5
Average consumption (kW/h) 4.5 4.5
Approx. weight (kg)

X = 1300  -  8100
X = 2250 8400
 -
Overall dimensions (mm)

 X = 1300

2230 x 3630
X = 2500 3980 x 3630
-

*for sheets of over 50 kg weight combined brush and balls tables are required.
