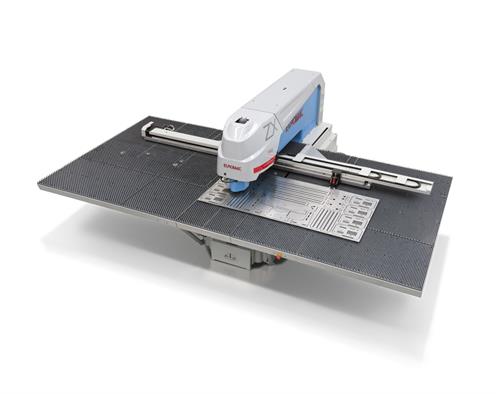

ZX

Product Code: 20
Call for price
Empty
zx plus flex
1250/30-1300

zx plus flex
1250/30 - 2250 - 2500

Max. punching force (kN) 300 220
Y axis with Multitool /Monopunch (mm)

1300 / 1250

1300 / 1250

X axis (mm)

1300 / 2250

1300 / 2500

Automatic repositioning in X (mm) fino a 10000 fino a 10000
Numerically control stroke depht (mm) da 0.1 a 31 da 0.1 a 31
Hydraulic servomotor controlled system standard standard
Position accuracy (mm) +/- 0.05 +/- 0.05
Precision in forming repeatability (mm) +/- 0.1 +/- 0.1
Bidirectional Autoindex stations 1 1
Opening of clamps (mm) 11 11
Automatic positioning clamps 2 2
Max. hit rate (1/min):
Punching with 20 mm pitch 375 375
Nibbling with 1 mm pitch 1000 1000
Marking 2000 2000
Thickness range (mm) 0.6 -8 0.6 - 6
Max. weight at reduced axis speed (kg) 150* 150*
USB port 6 6
Installed power (kW) 8.5 8.5
Average consumption (kW/h) 4.5 4.5
Approx. weight (kg)
X = 1300   7900  -
X = 2250  -  8200
X = 2500 - 8300
Overall dimensions (mm)
 X = 1300   2240 x 3630

 -
 X = 2250  -  3980 x 3630

X = 2500 - 4840 x 3630
 Max. thickness (mm) with op. clamps 13 mm (for copper / aluminium)  12.5  12.5

*for sheets of over 50 kg weight combined brush and balls tables are required.
