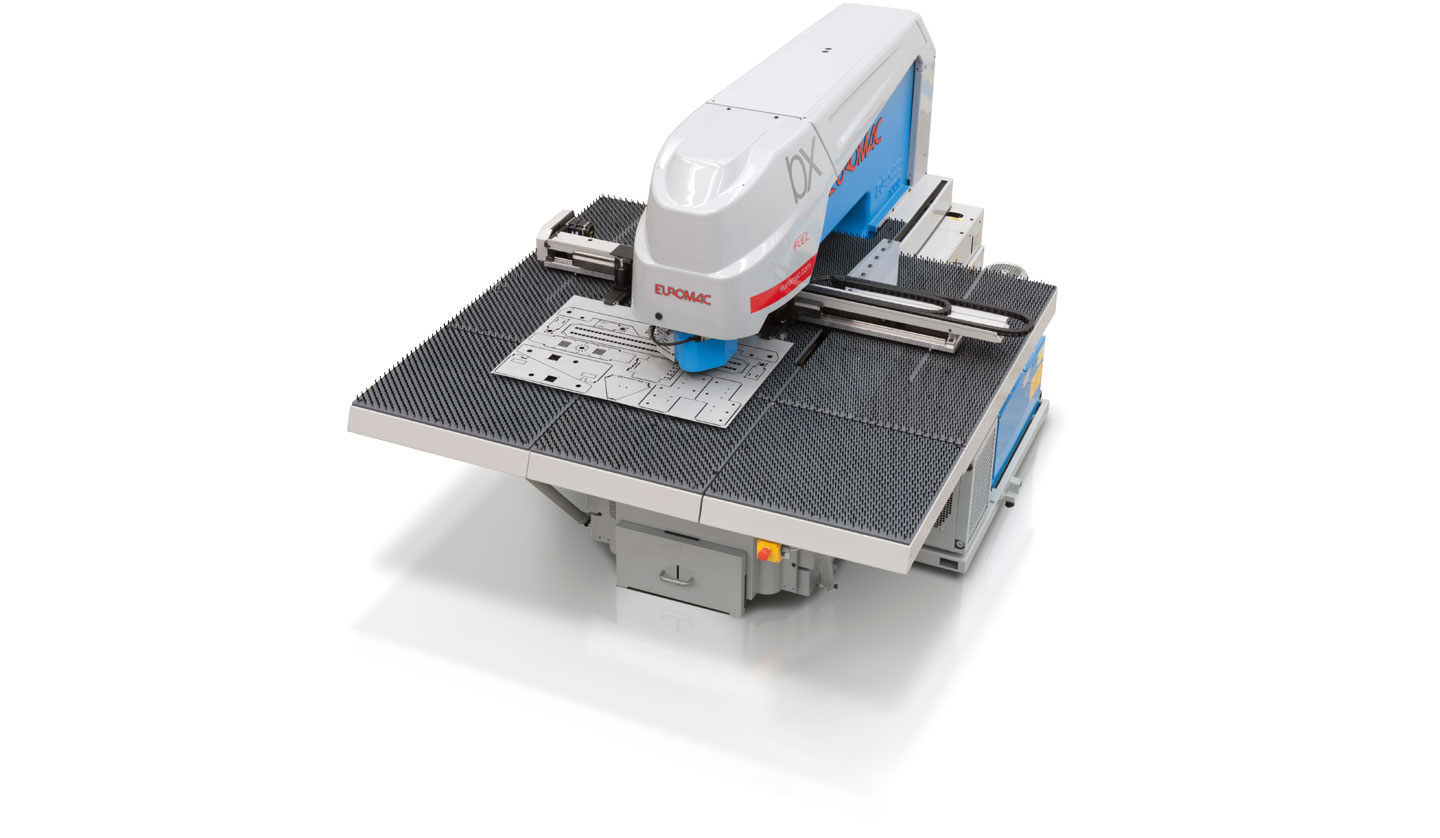

BX

Product Code: 21
Call for price
Empty

BX Autoindex
1000/30-1250 1000/30-2250

BX Autoindex
1250/30 - 2250 1250/30 - 2500

bx multitool
1000/30-1250 1000
/30-2000

Max. punching force (kN)

300

300

300

Y axis with Multitool /Monopunch (mm)

Y = 1000

1050 / 1000

-

1050 / 1000

Y = 1250

-

1250 / 1300

-

Position accuracy (mm)

+/- 0.01

+/- 0.01

+/- 0.01

Opening of clamps (mm)-

standard

43411

11

7

Max. hit rate (1/min):

Punching with 20 mm pitch

250

250

250

Nibbling with 1 mm pitch

550

250

550

Thickness range (mm)

0.6 - 6

0.6 - 6

0.6 - 7

Max. weight at reduced axis speed (kg)

150*

150*

150

USB port

6

6

6

Installed power (kW)

7.5

8.5

6

Approx. weight (kg)

X = 1250

5100

-

4000

X = 2250

5400

8300

5000

Overall dimensions (mm)

X = 1250

2230 x 3250

-

2240 x 3250

X = 2250

3990 x 3250

3980 x 3630

3980 x 3250

Max. thickness (mm)  with standard clamps

11

11

7

Max. thickness (mm) with op. clamps 13 mm (for copper / aluminum)

12.5

12.5

12.5

* for sheets of over 50 kg weight combined brush and balls tables are required

X = 2500

-

8500

-

X = 2500

4850 x 3250

4850 x 3250

-



Configuration

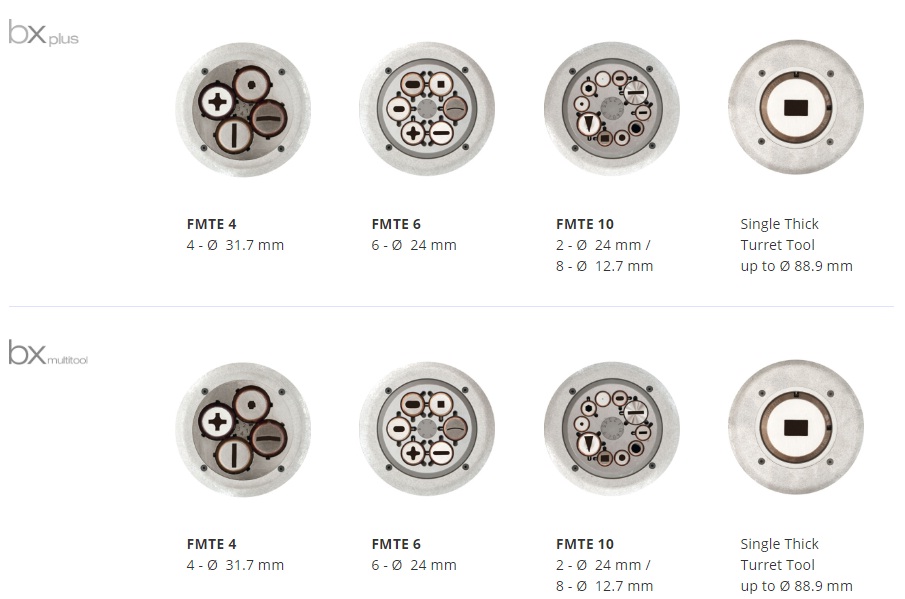

bx configuration
