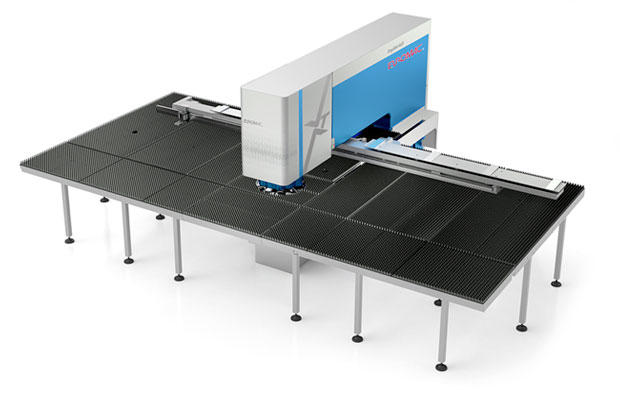

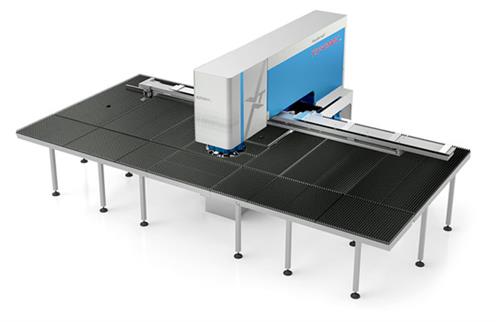

XT

Discover the new punching machines generation.
Euromac’s XT new high performance punching machine, is flexible according to any production requirement.
Product Code: 22
Call for price
Empty

Discover the new punching machines generation.
Euromac’s XT new high performance punching machine, is flexible according to any production requirement.

Fully configurable, hydraulic, hybrid, electric, 6 or 12 turret machine.

Working area of 3000 x 1500 mm without repositioning.

Punching speed:

– up to 1080 strokes per minute for nibbling 1 mm pitch
– up to 460 strokes per minute for punching 20 mm pitch



XT flex
1250/30-2500
 XT flex
1500/25-3000
Max. punching force (kN) 300 2250
Y axis with Multitool /Monopunch (mm)
Y = 1250 1300 / 1250
Y = 1500 - 1550 / 1500
X axis (mm) 2500 3000
Automatic repositioning in X (mm) fino a 10000 fino a 10000
Numerically control stroke depht (mm) da 0.1 a 31 da 0.1 a 31
Hydraulic servomotor controlled system standard standard
Position accuracy (mm) +/- 0.05 +/- 0.05
Precision in forming repeatability (mm) +/- 0.1 +/- 0.1
Bidirectional Autoindex stations 3 3
Opening of clamps (mm) 11 11
Automatic positioning clamps 2 2
Max. hit rate (1/min):
Punching with 20 mm pitch 480 480
Nibbling with 1 mm pitch 1080 1080
Marking 2000 2000
Thickness range (mm) 0.6 - 6.5 0.6 - 6.5
Max. weight at reduced axis speed (kg) 180* 180*
USB port 6 6
Installed power (kW) 8.5 8.5
Average consumption (kW/h) 4.5 4.5
Approx. weight (kg)
X = 2500 9000 9700
Overall dimensions (mm)
X = 2500

5200 x 4100

6200 x 4600

*for sheets of over 50 kg weight combined brush and balls tables are required.
