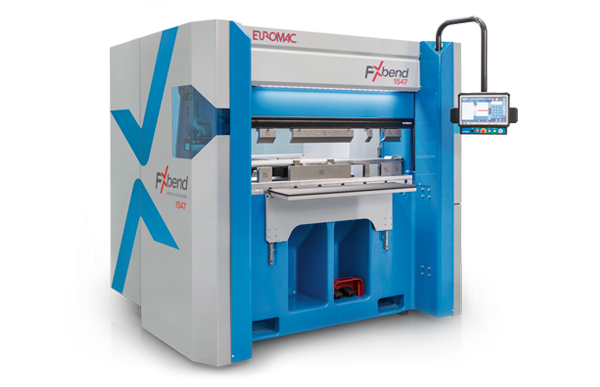

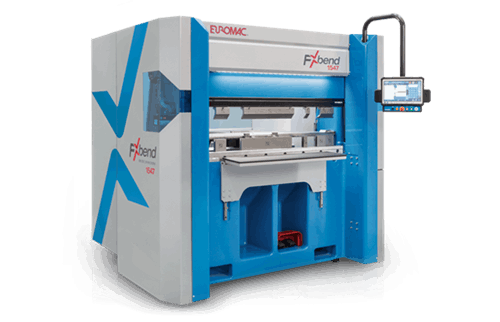

Hide × Add Image Search Includes Search Products in category Electric Press Brake Share on social networks FX Bend 1547 Innovation, reliability and productivity. If you had to define FX Bend through three words would be certainly these. Product Code: 25 12345 Call for price Empty Overview Related Files Reviews A machine designed to overcome your goals. Thus was born FX bend 1547 . A solution for your working needs that combines the assumptions of the FX bend range with greater power and an increase in bending length. Bending length 1530 mm. Maximum bending power 470 kN. FX bend 1547 Max. bending force (kN) 470 Bending length (mm) 1530 Y axis stroke (mm) Y axis speed (mm/sec) 200 Inclination (mm) (Y1-Y2) Wila tool fixing opening (die holder-punch holder) (mm) 395 Promecam tool fixing opening (die holder-crosspiece) (mm) 470 4-AXIS PIECE CLAMP X axis travel (mm) 375 + 400 X axis speed (mm / sec) 240 Axis travel Z1-Z2 (mm) 1500- 85x2 Z axis speed (mm / sec) 1100 R axis travel (mm) 180 R axis speed (mm / sec) 600 6-AXIS PIECE CLAMP Axis stroke X1-X2 (mm) 375+705 X-axis speed (mm / sec) 650 Axis travel Z1-Z2 (mm) 1350 Z axis speed (mm/sec) 800 Axis stroke R1-R2 (mm) 180 Axis speed R (mm / sec) 650 Wireless connection / USB port SI / 2 Motor power (kW) 2x5,2 Electrical connection (kWa) 6 Approx. weight (kg) 4400 Visit Count: 1,138 Description Size Type Download Description Catalogue Size 1.68MB Type Download Average Rate:0.0 (0 votes) 12345 If you want to submit a comment, you should login to the system first. To login please click the login button. Login AddToCartModal ×
