VA 220/6 R

Product Code: 27
Call for price
Empty

The high productivity of Euromac hydraulic notching machines is demonstrated daily by more than 12.000 users all over the world.

Euromac notcher owners manufacture thousands of different products using our fixed-angle notchers, variable-angle notchers, and our Multi-notchers with double working stations.

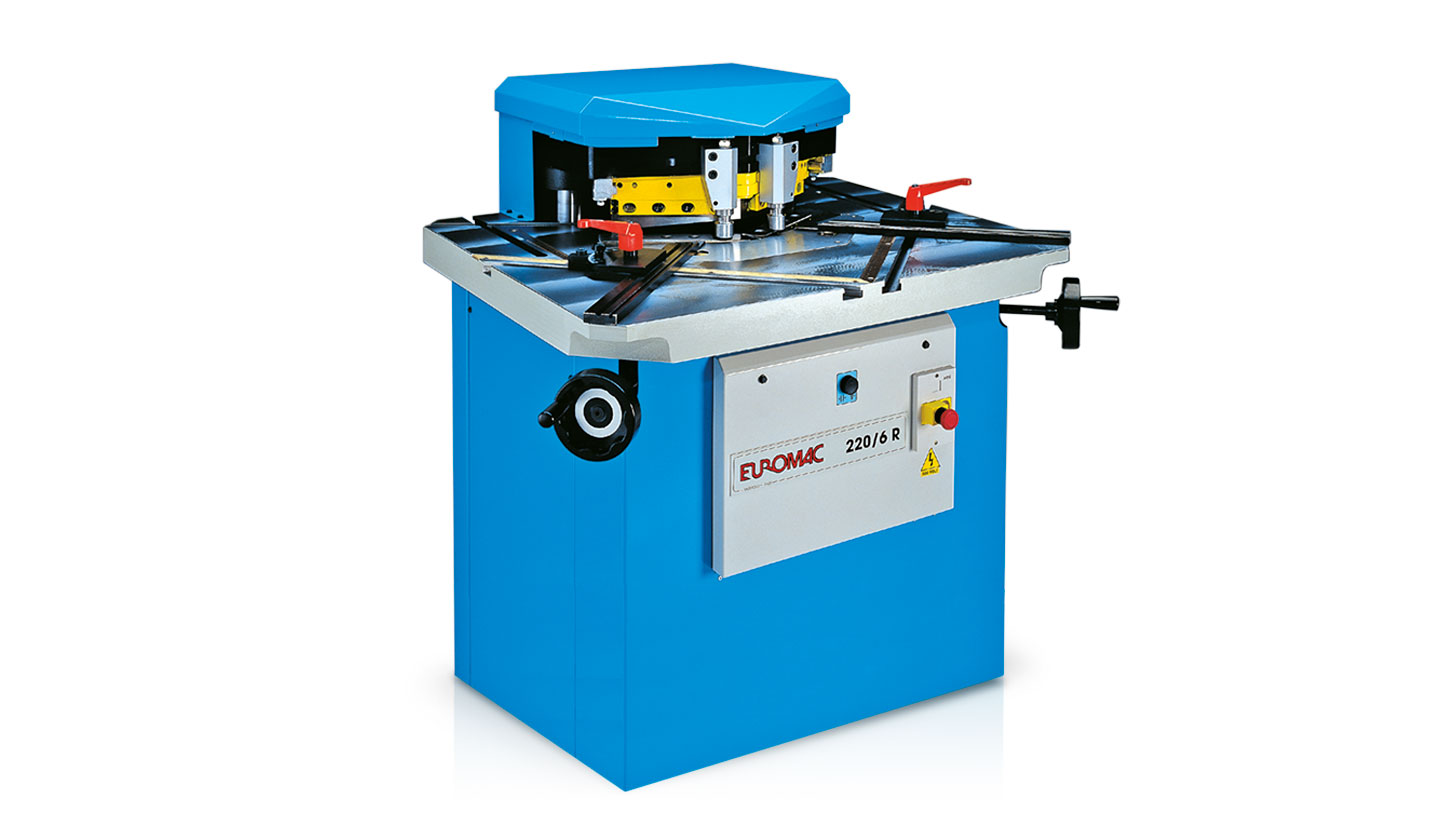

VA 220/6R
Variable cutting angle VA
30° - 140°
Blade clearance adjustment
Automatico
Blade lenght (mm) 220
 Max.thickness
R = 42Kg/mm2 6,5
R = 60Kg/mm2
5
 Strokes/min
at max. cutting length 50
at 50 mm of cutting 80
Working height (mm)  900
Oil tank capacity (Lt) 35
Motor (Hp - Kw) 5,5 - 4
Approx. weight (Kg) 700
Working table dimesions (mm) 950 x 790
Overall dimensions (mm)
950 x 860 x 1200
Max. pressure (ton)
