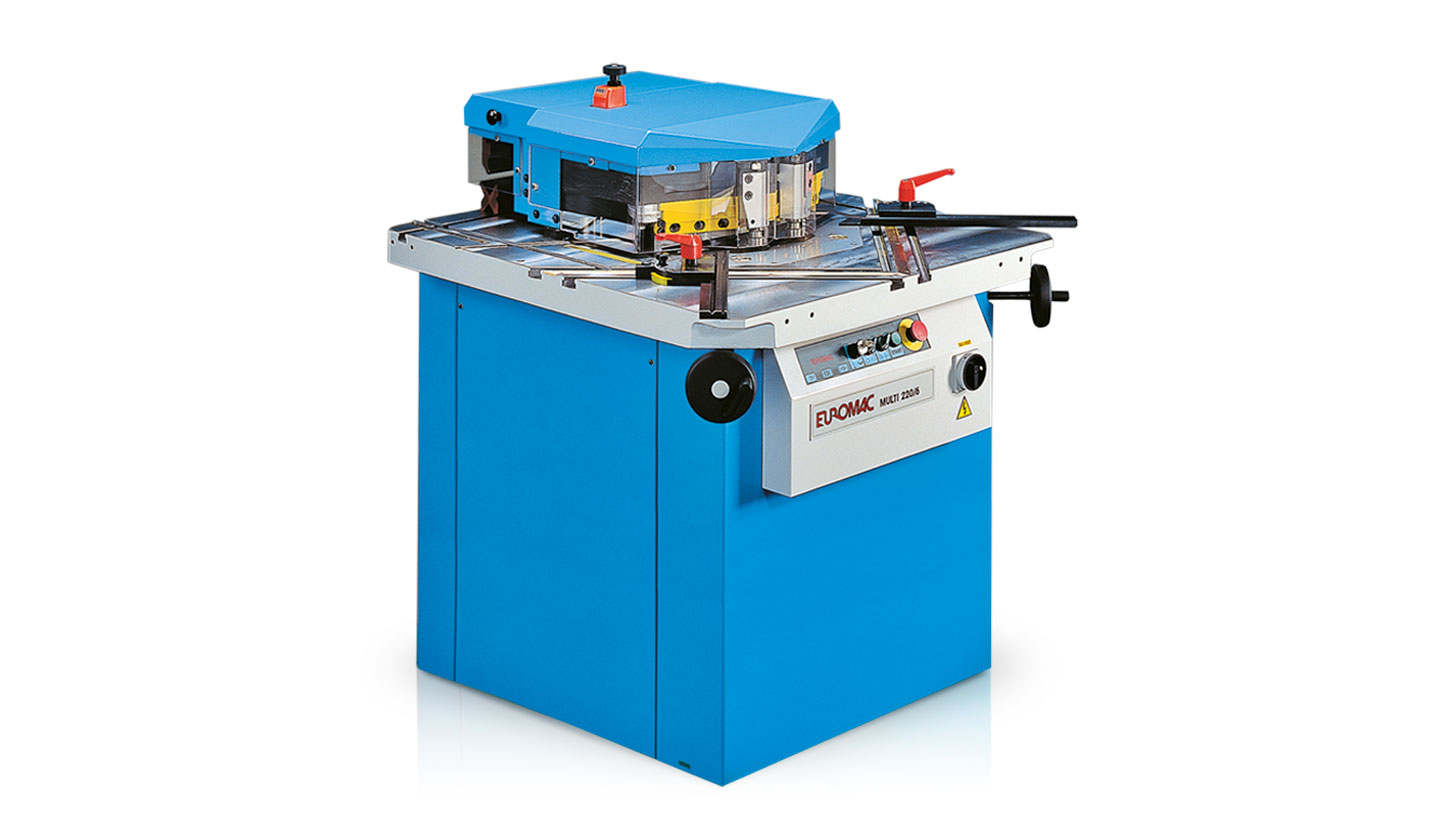

VA-Multi 220/6 R

Product Code: 28
Call for price
Empty

The high productivity of Euromac hydraulic notching machines is demonstrated daily by more than 12.000 users all over the world.

Euromac notcher owners manufacture thousands of different products using our fixed-angle notchers, variable-angle notchers, and our Multi-notchers with double working stations



VA Multi
220/6R
Variable cutting angle VA

30° - 140°
Blade clearance adjustment

Automatico
Blade lenght (mm) 220
R = 42Kg/mm2 6,5

R = 60Kg/mm2

5
at max. cutting length 50
at 50 mm of cutting 80
Working height (mm)  900
Oil tank capacity (Lt) 50
Motor (Hp - Kw) 5,5 - 4
Approx. weight (Kg) 800
Working table dimesions (mm) 950 x 1030

Overall dimensions (mm)
1100 x 950 x 1280

Max. pressure (ton)  18
Max. thickness
Strokes/min
