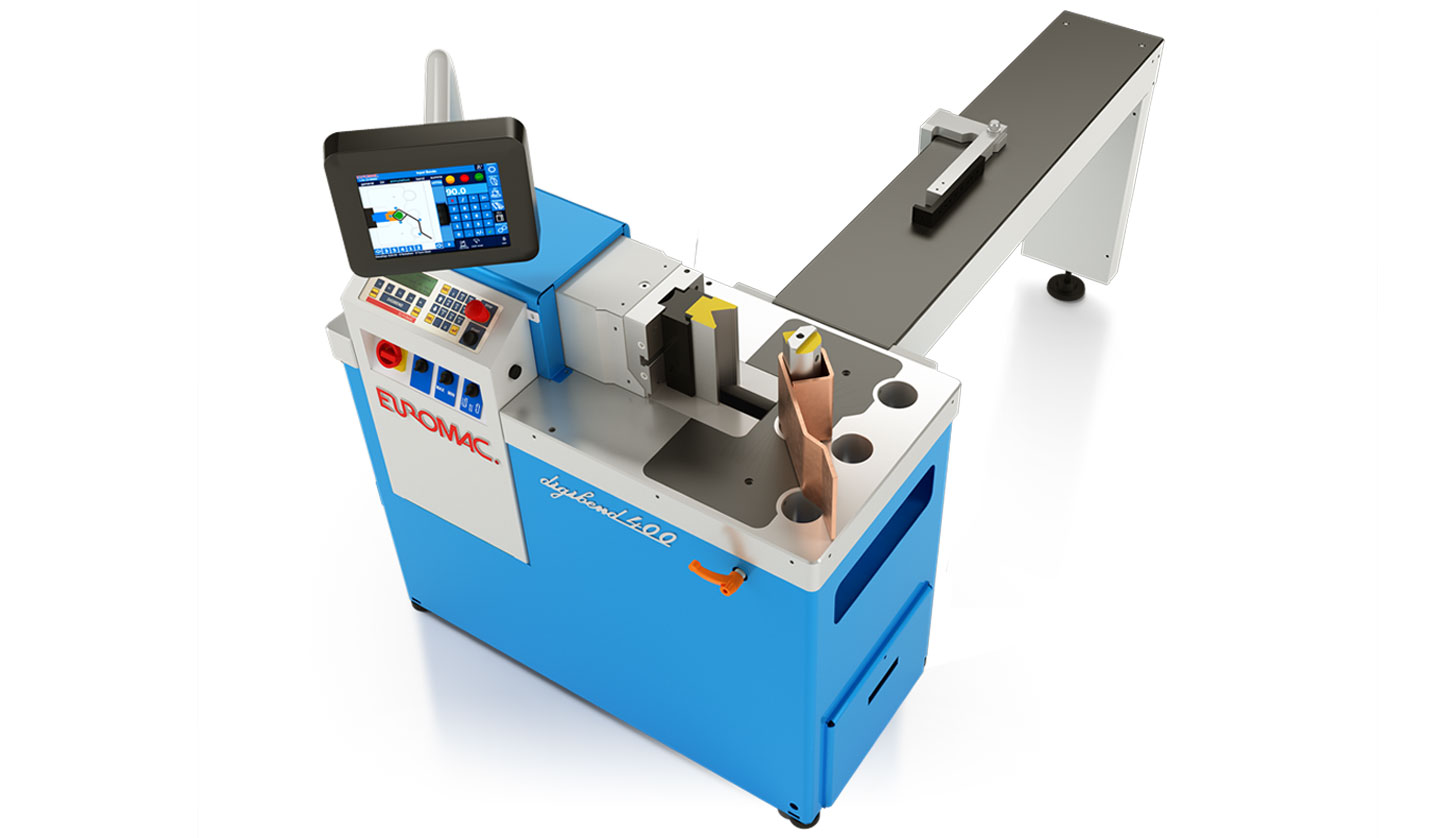

Digibend 400 CNC

Euromac offers a variety of standard tools for a Digibend and changing from one tool setup to another is fast and easy.
Product Code: 32
Call for price
Empty
digibend
400
Max. Pressure (KN) 400
Max.stroke(mm)
245
Max. working speed (mm/sec) 9.6
Min.working speed (mm/sec) 4.8
Return speed (mm/sec)
62
Average working speed(mm/sec) 35.8
Storables programs 255
Sequence of storables programs  50 + 5 (di punzonatura)
Number of bends for each sequence 16
Working table dimensions (mm) 580 x 1230 x 925 (A)

Fixing holes in working table (nr. x Ø - mm)

4 x Ø 80
Working height (mm)  925

Oil tank capacity (lt.)
 40

Motore HP - Kw  5.5 - 4


High bending (mm)  A=200

Extra high bending (mm)

A=400
 Shearing max thickness

A=150 x 10 (spess.)

 Punching max thickness  Ø 30 x 10 (spess.)

 Straightening (H/thickness)  A=200

 Two-jaw-bending (mm)  Ø 60

 Rotary bending (mm)  Ø 50
 CNC automatic backguage (Length, mm)

1250 / 2000
 Approx. weight (kg)

700
 Overall dimensions (L x l x h)  580 x 1230 x 1150

All application range indications are refered to steel material with 400N/mm2 resistance.
