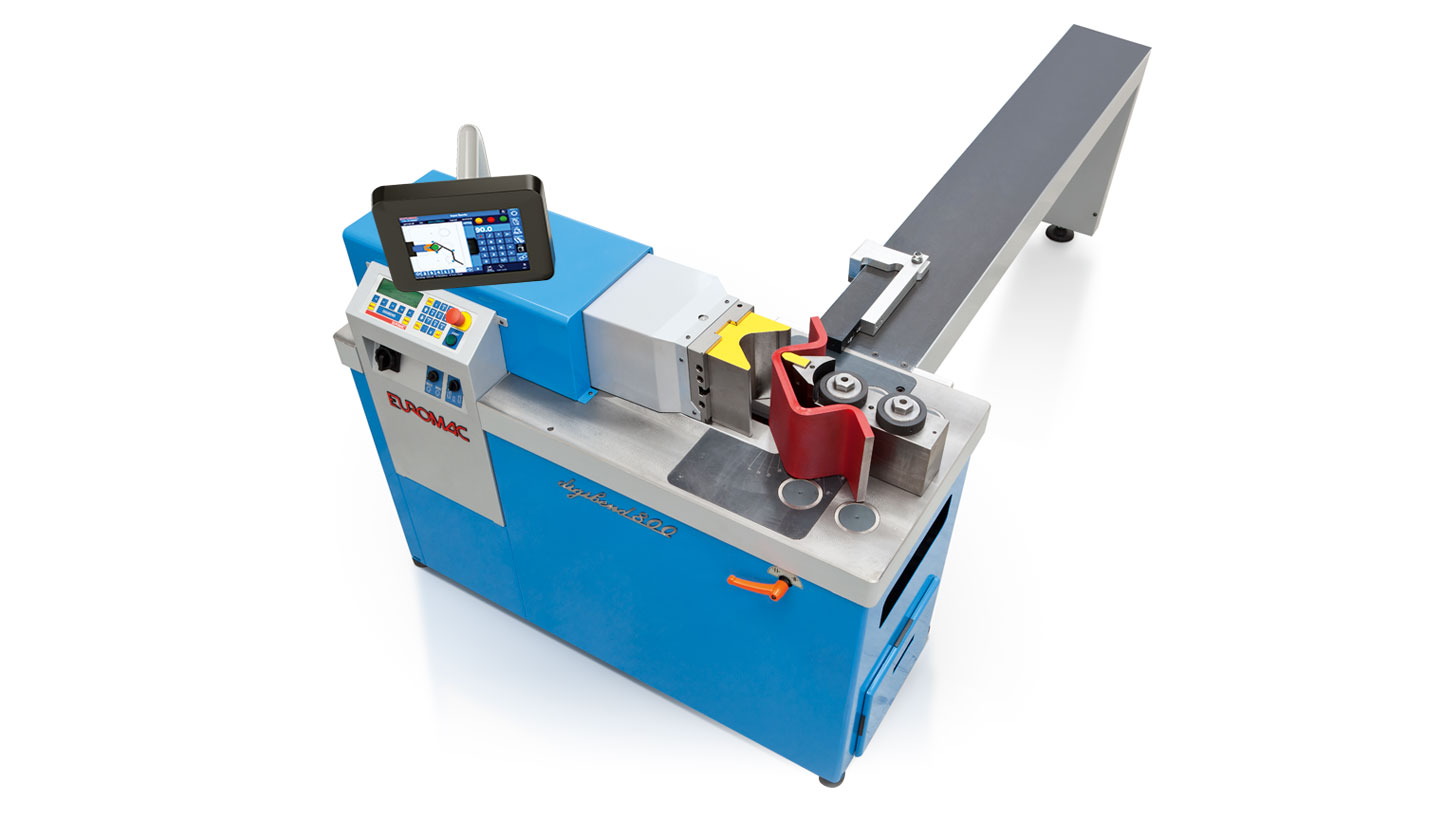

Digibend 800 CNC

Product Code: 33
Call for price
Empty
digibend
800
Max. Pressure (KN) 800
Max.stroke(mm)
345
Max. working speed (mm/sec) 9.3
Min.working speed (mm/sec) 4.6
Return speed (mm/sec)
45
Average working speed(mm/sec) 27.2
Storables programs 255
Sequence of storables programs  50 + 5 (di punzonatura)
Number of bends for each sequence 16
Working table dimensions (mm)

650 x 1565 x 925 (A)

Fixing holes in working table (nr. x Ø - mm) 6 x Ø 80
Working height (mm)  925

Oil tank capacity (lt.)
60

Motore HP - Kw

5.5 - 4
High bending (mm) A=200

Extra high bending (mm) A=400

 Shearing max thickness  A=150 x 12 (spess.)

 Punching max thickness  Ø 30 x 12 (spess.)

 Straightening (H/thickness)  A=200

 Two-jaw-bending (mm)  Ø 60

 Rotary bending (mm)  Ø 50
 CNC automatic backguage (Length, mm)  1250 / 2000

 Approx. weight (kg)

1500
 Overall dimensions (L x l x h) 750 x 1565 x 1200

All application range indications are refered to steel material with 400N/mm2 resistance
