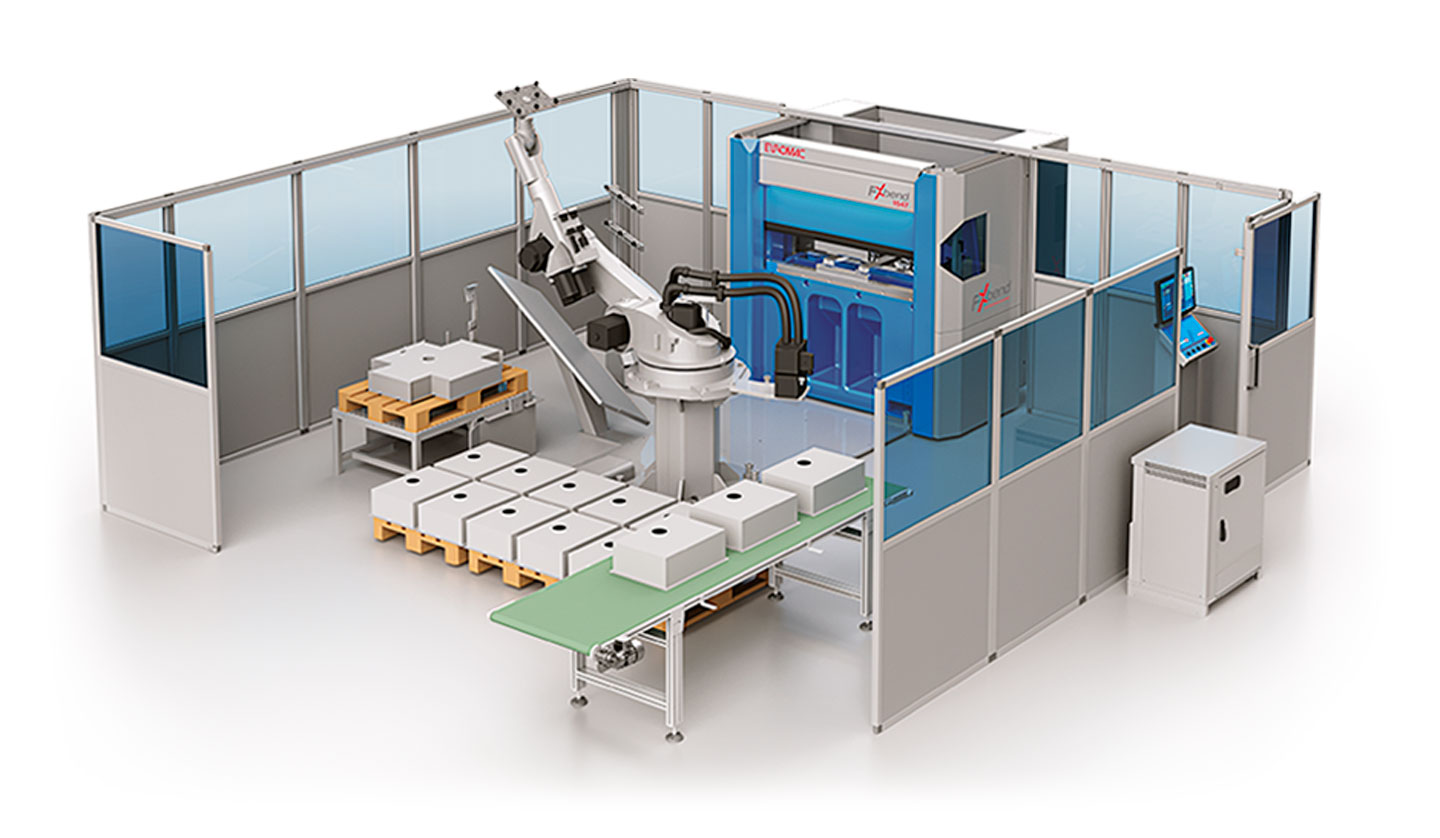

Fx bend Cell 1547-KR 60 Standard

Product Code: 37
Call for price
Empty
Cell 1547
Max.bending force (kN) 470
bending length (mm) 1530
Daylight opening
Wila clamping (die holder - to punch holder)(mm) 395
Promecam clamping (die holder-to ram)(mm) 470
Y axes stroke (mm) 250
Y axes speed (mm/sec) 200
Max. automatic bending speed 36
Max. manual bending speed (mm/sec) 10
Robot
Max. reach (mm) 2233
Max.playload with gripper (kg) 60
Number of axes 6
Pose repeability (mm)

+-0,06
FX Cell
Loading
Minimum parts dimension 1 (mm) 1500 x 800

Minimum parts dimension (mm)
50 x 100
Maximum stack height (mm) 300
Maximum thickness (mm) 5
Minimum thickness (mm)  0,7
 Maximum part weight (Kg)  30
 Unloading
Belt conveyor Max. parts dimension (mm) 1000 x 600 x h 300
Tape storage length (optional)  600 scarico + 600
Area for gravity unloading (mm)
1200 x 800
Connected load (kWa) 6
Approx. weight (kg)
6200
